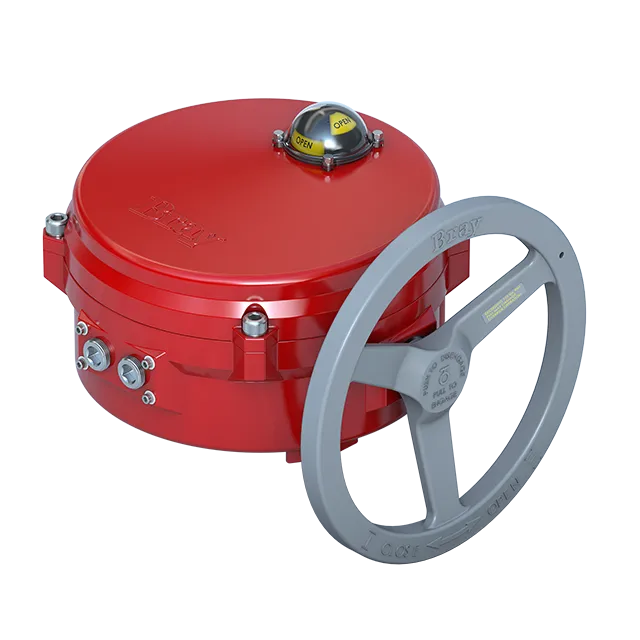

BRAY SERIES 70 ELECTRIC ACTUATOR
Output Torque:
120/230 V – 300 to 18,000 lb-in | 34-2034 N m
24 V – S70-E06: 600 lb-in | 68 N m / S70-E20: 2,000 lb-in | 226 N m / S70-050: 5,000 lb-in | 565 N m
Control Options:
On/Off – Interposing Relay Board (I.R.B) – 120/230 VAC
On/Off NXT Controller – 24V AC/DC
Modulating:
Servo NXT Controller 120/230 VAC | 24V AC/DC
4-20 mA | 0-10 V | 0-5 V | 2-10 V
Communication Protocols:
EtherNet/IP
Voltages: 120/230 VAC 50/60 Hz | 1-phase 24 VAC/VDC
Enclosure Ratings: NEMA Type 4/4x | and IP65 | 1P67 (IP67 does not include S70-130/131 and 180/181)
Mounting: IS0-5211 & MSS SP-101
Motor:
120/230 VAC: 1-phase, Reversible, Permanent Split Capacitor Induction Motor
24 V: Permanent Magnet Brushed DC Motor
Temp. Range: -20°F to 150°F | -29°C to +65°C
Switch Options:
2 SPDT Mechanical Switches Standard
Additional Auxiliary Switches Available (up to 6 total)
Optional Torque Switches Available
Duty Rating:
Continuous Duty – Will Operate Continuously At Max Ambient Temperature of 104°F | 40°C
Intermittent Duty – One Motor-On Period, Followed by Three Motor-Off Periods
CERTIFICATIONS & APPROVALS
UL | CSA and CE Approved (most 120V models)
24V & 230V; CE Approved
