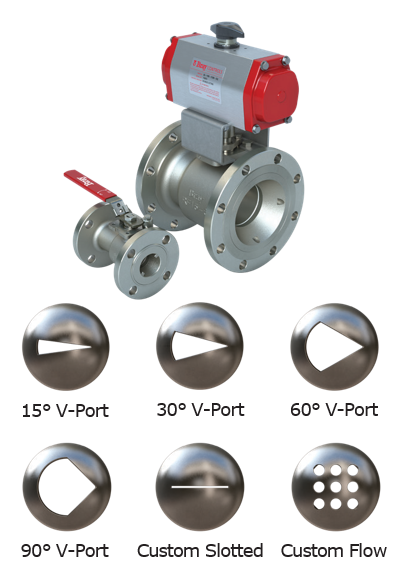

FLOW-TEK® V-CONTROL BALLS FOR SERIES F15/F30 | RF15/RF30 TRIAD SERIES | SERIES 7000/8000 | SERIES S7500
Size Range: NPS 1/4 to 12 | DN 8 to 300
Ports: V-Port 15° | 30° | 60° & 90° | Custom and Slotted Ports Full/Standard Port
Body Style: Flanged | 1-Piece | 2-Piece | 3-Piece
Temperature Range: -50°F to 650°F | -46°C to 343°C
Pressure Rating:
F-Series: ASME Class 150 | 300 | PN 10 | PN 16 | PN 25 | PN 40
Triad: 2200 psi WOG
7000/8000 | S7500: 1000 psi WOG
End Connections: Flanged | Threaded | Socket Weld | Butt Weld Extended Socket Weld or Butt Weld | Tri-Clamp
Body Materials: Stainless Steel | Carbon Steel | Alloys
Seat Materials: Standard: Tek-Fil® Optional: RPTFE | TFM | PEEK | Metal
Applications: Flow Control | Level Control | Temperature Control | Low Pressure Steam Control
