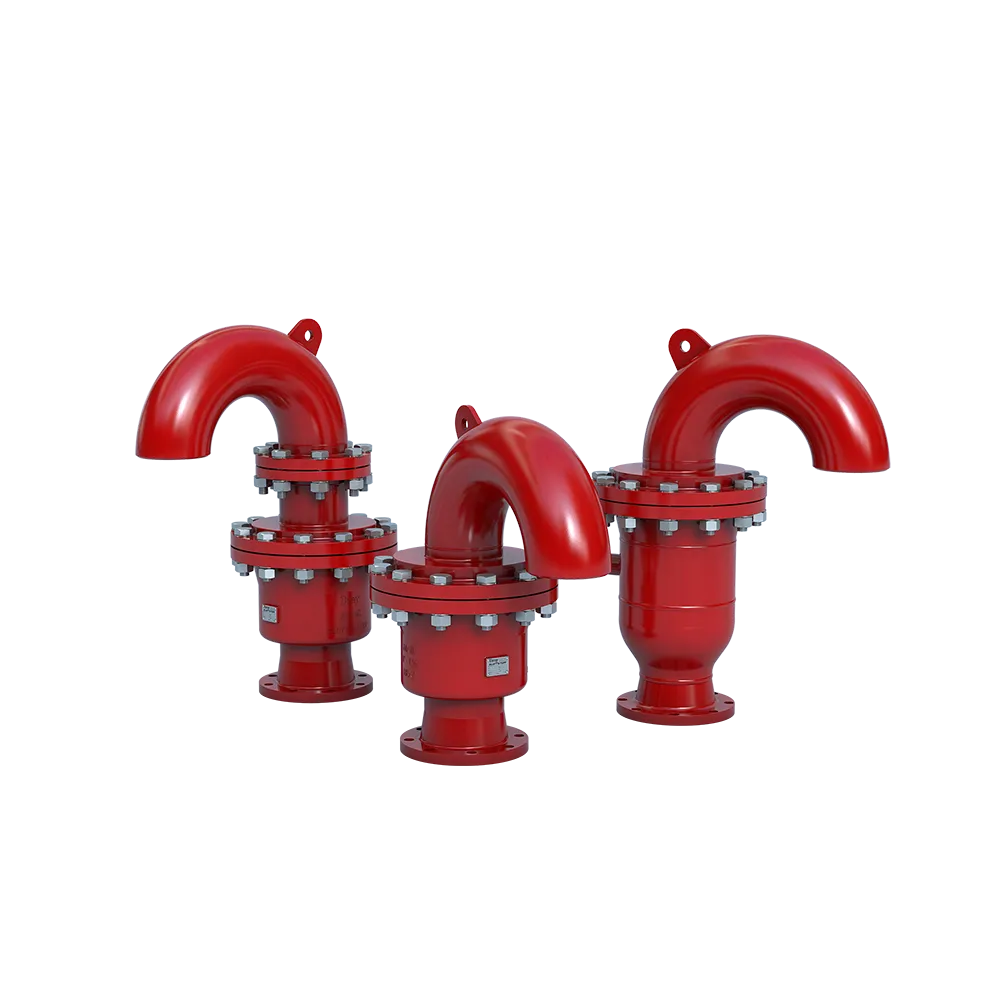

BRAY SLURRYTUFF® – EZI-VAC AIR RELEASE VACUUM BREAK VALVE
Operation: Air Release & Vacuum Break (EV) | Triple Action (ET) | Vacuum Break Only (EB)
Sizes Range: NPS 1 to 16 | DN 25 to 400
Rating: ASME Class 150 | 300 | 600
Body: Fabricated or Cast Carbon Steel | Stainless Steel | Duplex Steel
Float: High Density Polyethylene or Urethane Coated Aluminum
Outlet: Cover Carbon Steel Standard | Stainless Steel Optional
Connection: Flanged ANSI B16.5 RF Class 150 | 300 | 600 (Or as Required)
Seal: Chutex Wear Resistant Natural Rubber Standard | Nitrile | Viton™ | EPDM
Gasket: BUNA-N O-ring | Viton™ | EPDM | Other Options on Request
Fasteners: Galvanized Carbon Steel | Stainless Steel
Lining: (Optional) Natural Rubber | Nitrile | Urethane | EPDM | Bromo butyl
Finish: 2-coat Interzone 954 Epoxy Paint
Testing: API 598
Standard: ASME B16.34 | ASME B16.5 | ASME B31.3
Option: non-slam | Bird Screen | Flush Port | Secondary Release
Applications: Slurries | Chemical | Sand | Pulp | Dewatering and Process Water
