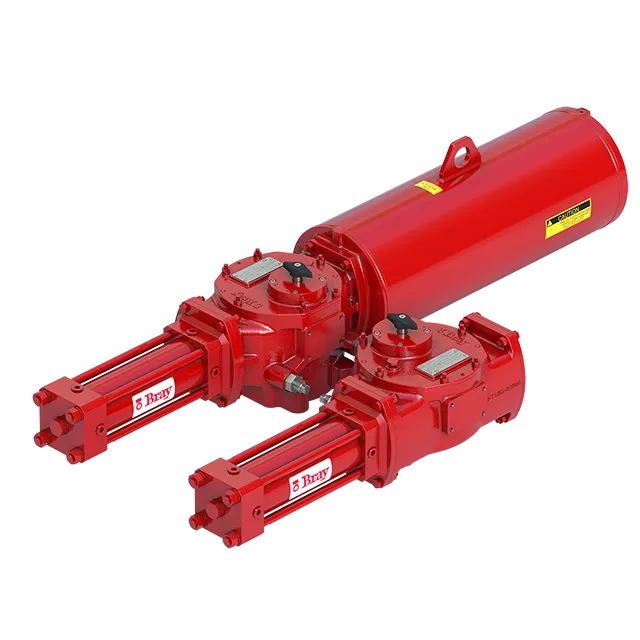

BRAY SERIES 98 PNEUMATIC
SCOTCH YOKE ACTUATORS
Media: Dry Compressed Air | Inert Gas | Natural Gas
Pressure Range: 40 to 150 psi | 2.8 to 10.3 bar
Temperature Range:
Low Temperature: Down to -50°F | Down to -46°C
Standard Temperature: -20°F to 200°F | -29°C to 93°C
High Temperature: Up to 300°F | Up to 149°C
Torque Output:
Double Acting 1787 lb-in to 885,100 lb-in
Double Acting 220 N m to 100,000 N m
Spring End Torque: 2,741 to 445,261 lb-in | 310 to 50,306 N m
Torque Base: Mounting Dimensions as per ISO 5211: 2017
Accessories: Shaft Driven Accessories | Mounting per NAMUR-VDE
Performance Testing: EN 15714-3:2009
Ingress Protection: IP67M per IEC 60529
Safety: ATEX | SIL 3 suitable | PED on request
