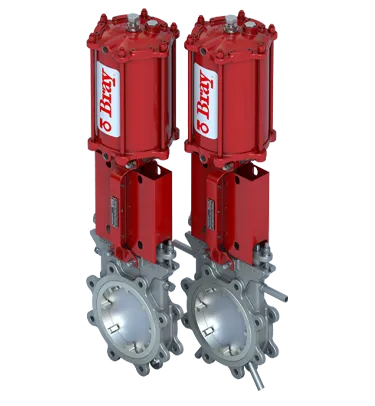

BRAY SERIES 943 UNIDIRECTIONAL KNIFE GATE VALVES
Size Range: NPS 2 to 24 | DN 50 to 600
Pressure Rating:150 psi | 10 bar
Body Style: Single Piece – Lug
Design: MSS SP-81
Testing: MSS SP-151
Face-to-Face: MSS SP-81
Drilling: ASME B16.5 CL150
Actuator Options: Handwheel | Pneumatic | Hydraulic | Electric | Bevel Gear
Body Materials:CF8 | CF8M
Gate Materials: 304 SS | 316 SS | 317 SS
Seat Materials: Metal | BUNA-N | EPDM FKM | RPTFE
Packing Materials: PTFE Impregnated Synthetic Fiber with Quad Seal
Applications: General purpose on/off service and isolation of clean/dirty corrosive, abrasive, viscous, and high temperature media in power, mining, pulp and paper, cement, carbon black, and chemical applications.
