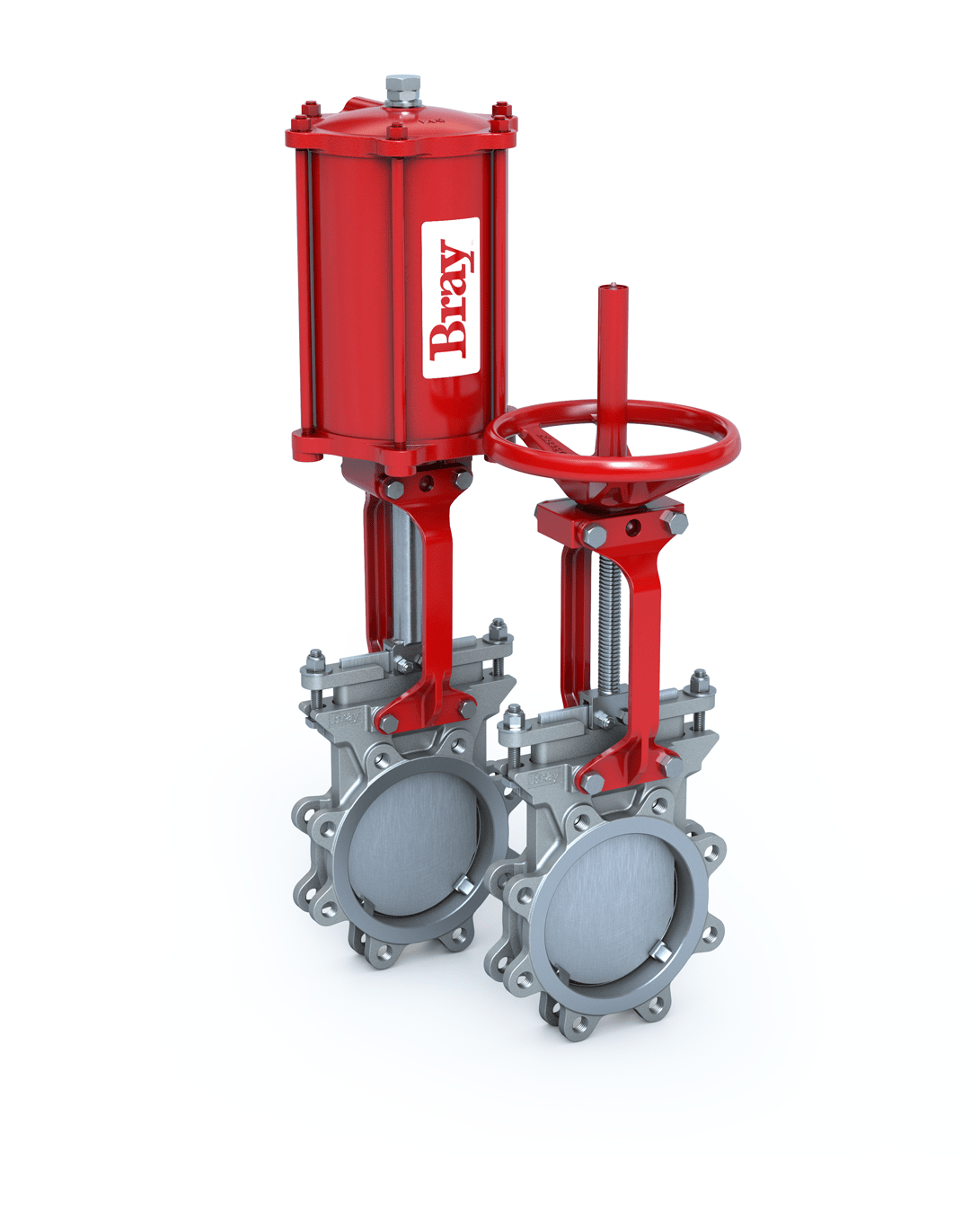

BRAY SERIES 941 UNIDIRECTIONAL KNIFE GATE VALVES
Size Range: NPS 2 to 24 | DN 50 to 600
Pressure Rating: NPS 2 to 24 – 150 psi – DN 50 to 600 – 10 bar
Body Style: Single Piece – Lug
Design: MSS SP-81
Testing: MSS SP-151
Face-to-Face: MSS SP-81
Certification: CRN | PED | UKCA | ATEX | UKCA EX
Drilling: ASME B16.5 CL150
Actuator Options: Handwheel | Pneumatic | Hydraulic | Electric
Body Materials: CF8 | CF8M (316 SS)
Gate Materials: 304 SS | 316 SS
Seat Materials: Metal | BUNA-N EPDM | FKM | PTFE
Stem Materials: 304 SS
Packing Materials: Energized Quad, Seal with PTFE Anti Extrusion Ring
Applications: On/off service and isolation of clean/dirty corrosive or viscous media in pulp and paper, chemical, mining power, and wastewater applications.
