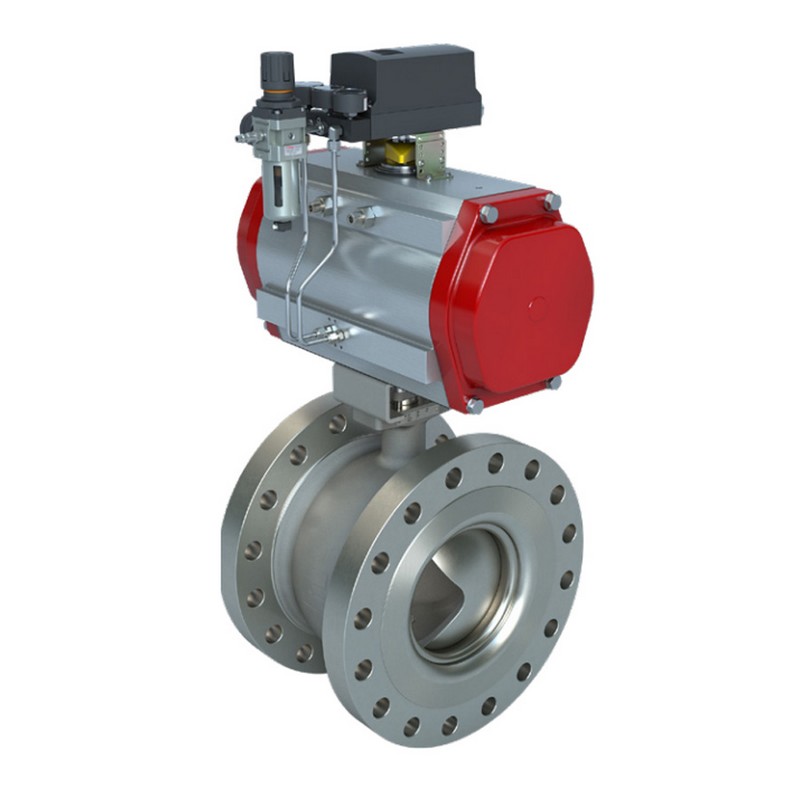

BRAY SERIES 19L SEGMENTED
Size Range: NPS 1 to 12 | DN 25 to 300
Port: Segmented V-Ball
Body Style: 1 Piece
Temperature Range: -50°F to 500°F | -46°C to 260°C
Pressure Rating: ASME Class 150 | 300 | 600 | PN 10 | PN 16 | PN 25 | PN 40
End Connections: Flanged ASME Class 150 | 300 | 600 | PN 10 | PN 16 | PN 25 | PN 40
Body Materials: Stainless Steel | Carbon Steel | Optional Special Alloys
Seat Materials: Metal
Applications: Liquid | Gas | Steam | Pressure Control | Temperature Control Level Control | Slurry and Abrasive Services | Suspended Solids
